X-Ring vs O-Ring

Definition of X-Ring

The X-Ring, also known as the Quad Ring or profile ring, is a sealing device with a unique design that has proven to be quite useful in a variety of sectors. Unlike ordinary circular seals, the X-ring has a distinctive cross or 'X' shaped profile. This design has four contact points, as compared to two in other ring types, resulting in outstanding sealing performance even under extreme conditions.

The design endows the X-ring with numerous remarkable properties, including decreased friction, greater pressure resistance, and an increased longevity. Constructed from elastomeric materials such as nitrile rubber (NBR), fluorocarbon (FKM), or ethylene-propylene-diene monomer (EPDM), this material's malleability and flexibility give excellent wear and tear resistance. X-rings are suited for a wide range of applications, from hydraulic and pneumatic systems to dovetail grooves, because the materials used in their manufacturing can endure varying operating temperatures.

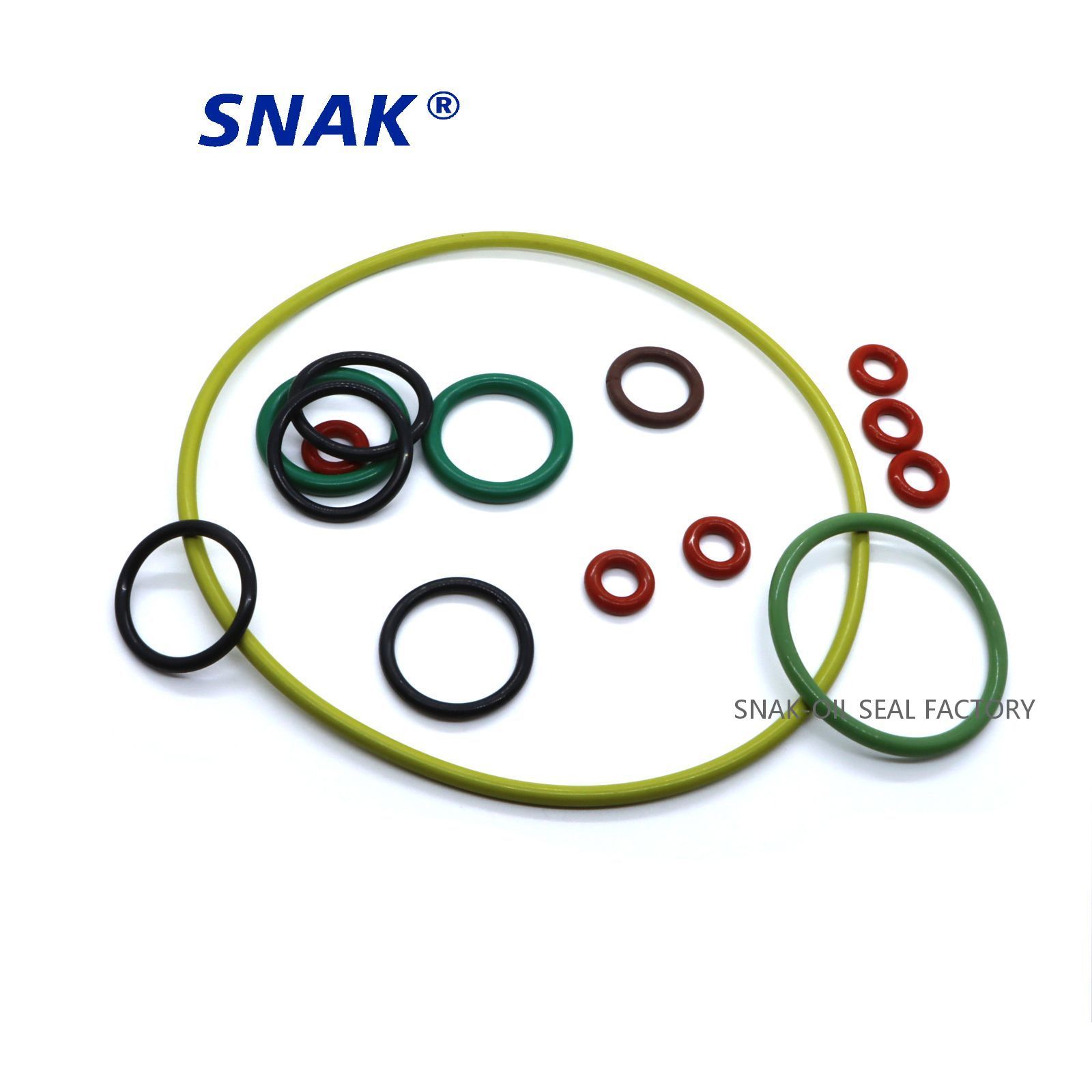

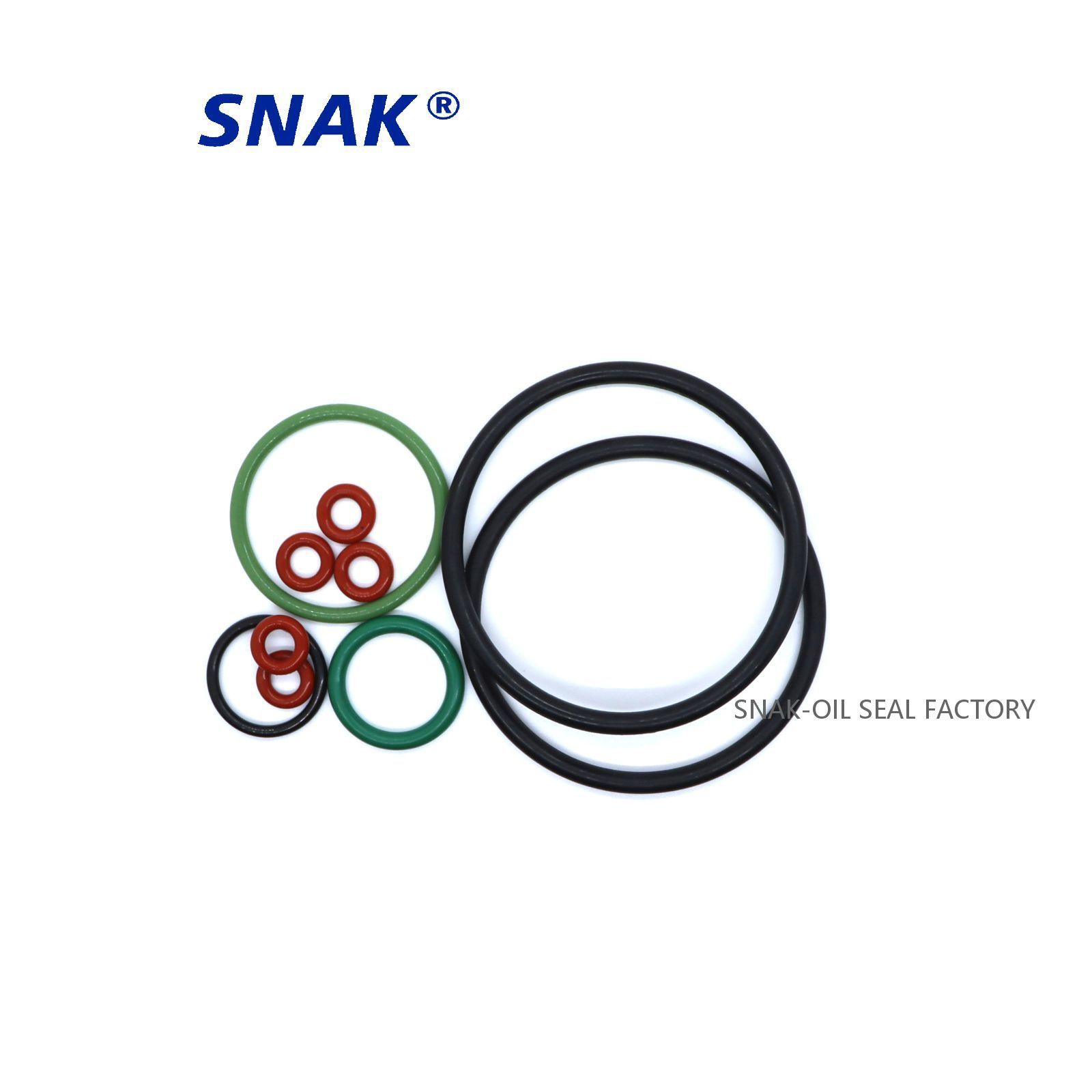

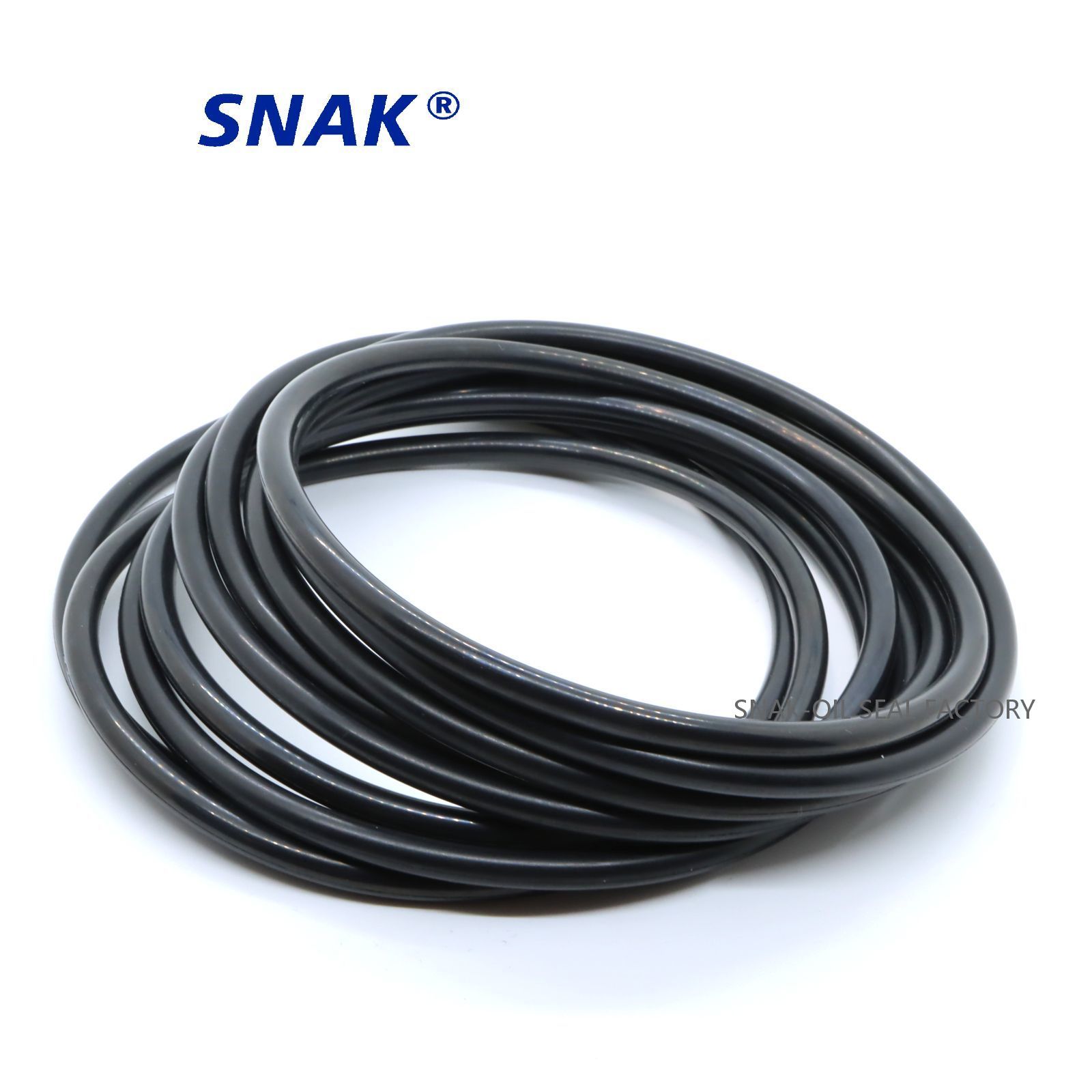

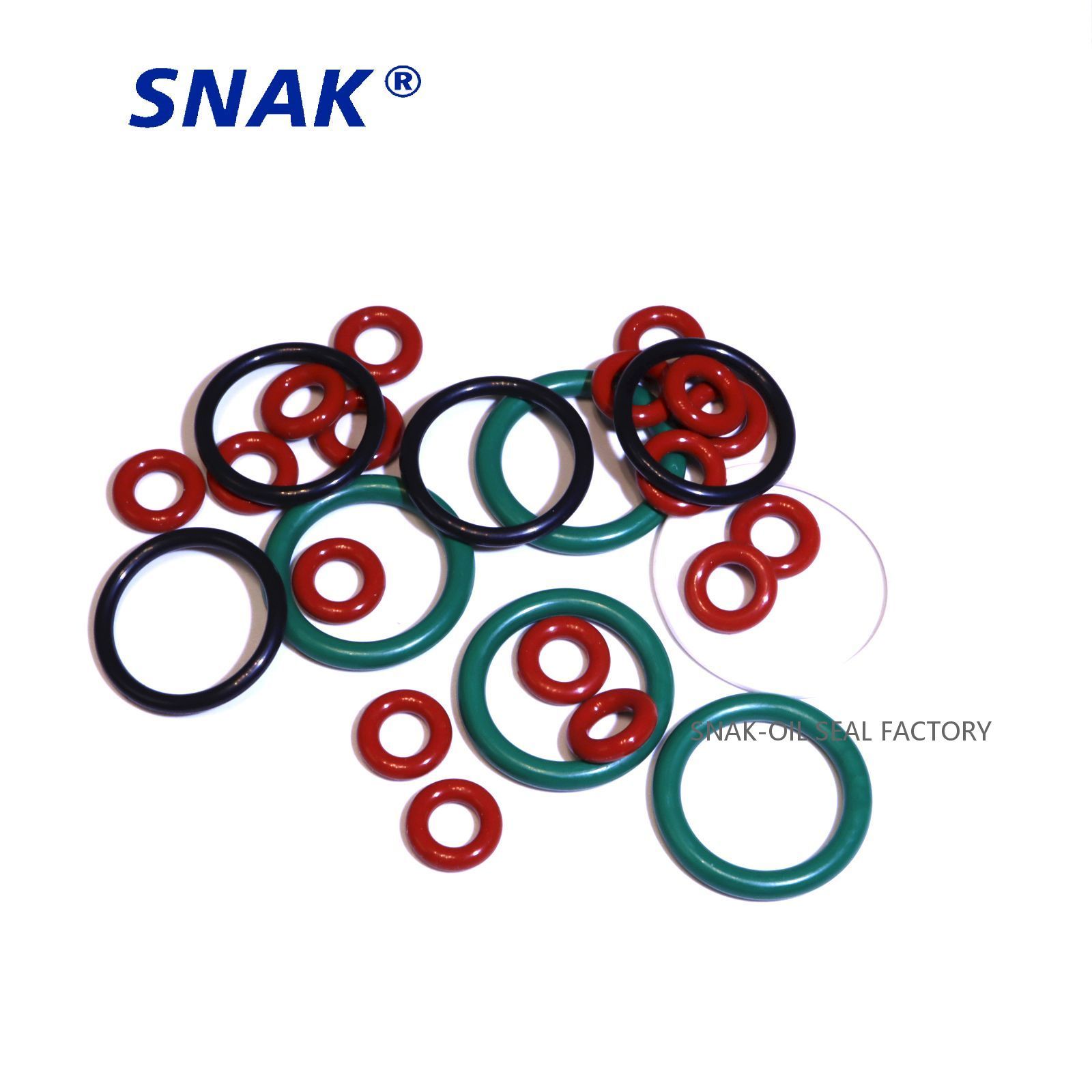

Definition of O-Ring

An O-Ring is a mechanical gasket shaped like a torus, or, more simply, a doughnut. It is defined by three basic characteristics: outer diameter (OD), inner diameter (ID), and cross-sectional diameter (width). The term 'O-Ring' derives from its round, O-shaped construction.

This elastomer loop with a round cross section is intended to be placed in a groove and squeezed during assembly between two or more pieces to form a seal. They are frequently employed in both static (relative motion between components) and dynamic (rotational or reciprocating) applications.

O-rings are often made of flexible, elastomeric materials such as silicone, neoprene, nitrile rubber, or fluorocarbon. However, they can also be manufactured of metal for certain applications that need high temperatures or pressures.

Composition and Structure

Both the X-Ring and the O-Ring have separate structures distinguished by their design variations. The O-ring is a basic yet effective ring-shaped mechanical gasket with a round cross-sectional area. It is made of either rubber or other elastomers and has the inherent properties of being flexible, malleable, and resistant to a wide range of climatic conditions, making it a suitable component for sealing applications.

On the contrary, the X-Ring gets its name from its distinctive x-shaped cross-section, which distinguishes it from the ordinary O-Ring. It is generally made of the same materials as O-rings, such as nitrile rubber or FKM (Viton), but has two sealing surfaces rather than one. This dual-sealing action provides an advantage in lowering clearance gaps and better tolerate pressure surges.


Strengths and Advantages

One of the X-Ring's key advantages is its lifespan. X-Rings are well-known for having a longer life duration than traditional O-rings, owing to their efficient design structure that encourages lower friction and twisting. The four contact points of an X-Ring significantly reduce wear and tear, resulting in greater resilience to severe temperatures and pressures. The X-Ring's greater stability under high-speed circumstances increases its performance efficiency greatly.

Furthermore, the fact that X-Rings provide a tighter seal indicates another clear benefit. Their unusual form enables for more flexibility and sealing capacity than its counterpart, which is especially useful in dynamic applications where components are constantly moving.


Pricing and Affordability

Pricing and affordability vary between X-rings and O-rings due to differences in production processes, material requirements, and usage situations. Prices range from low for basic designs to costly for those with unique features or materials. O-Rings are often less costly than X-Rings in most basic applications due to their simpler design and cheaper manufacturing costs.

In contrast, depending on the application or industry in which they are utilized, X-Rings may fetch a higher price. Their four-lobed shape, which provides improved performance under pressure and longer life spans, frequently results in greater expenses as compared to regular O rings. This may need a higher initial expenditure, but the lifespan can result in long-term savings because replacements may be required less frequently.

In conclusion

To summarize, both X-ring and O-ring designs have distinct properties that provide differing levels of performance efficiency and operational robustness in various processes and systems. To make an educated decision on whether to utilize an X-ring or an O-ring, consider your individual application needs, system compatibility, and performance expectations.
