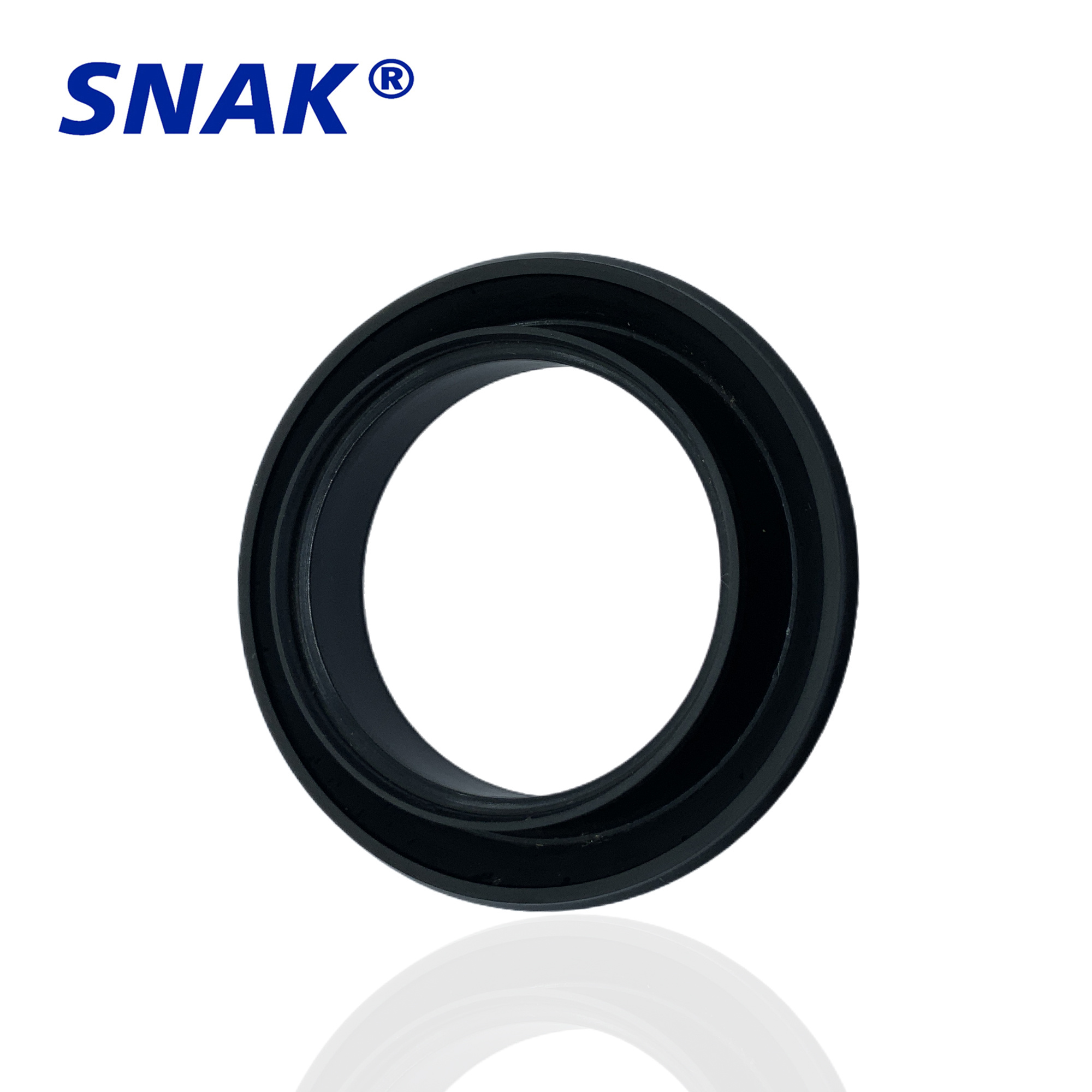

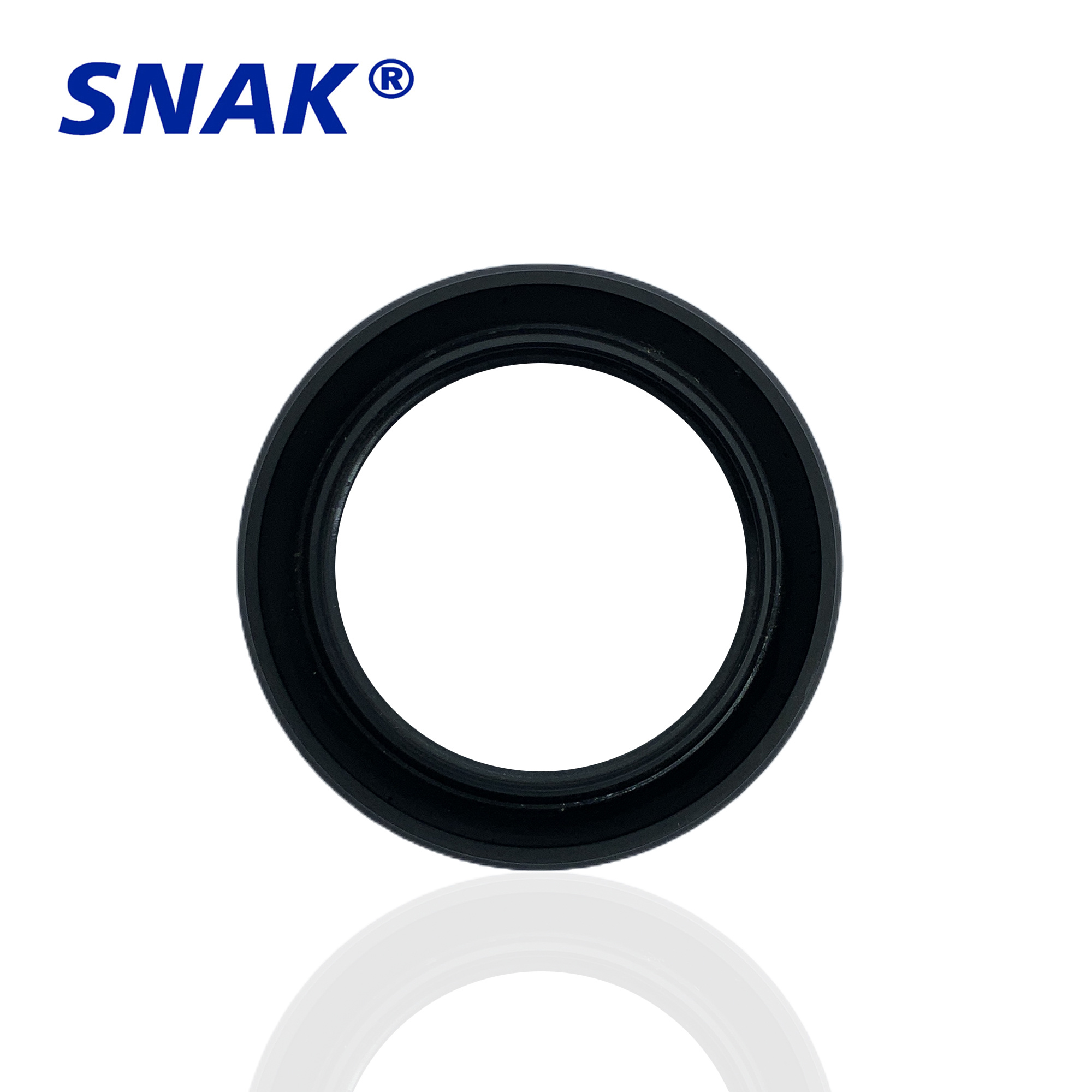

SNAK Factory Hiken Standard Brake Cup Seal 80563R 2 5/16 H Cylinder Black Rubber Honed Brake Ring Seal

Category: Other Seals

Consult Back

Overview

Essential details

Brand Name : SNAK

Application：

Certificate : ISO9001/TS16949

Type : Hiken Standard Brake Cup Seal

Quality ：High quality

Place of Origin : Hebei, China

Color : Black ，brown

Features : durable，wear resistance ，oil resistance

Material type : EPDM

OEM : 80563R

Packaging & delivery

Packaging Details : cartons packing Delivery Detail Within 15 days
Port : China port

Lead time :

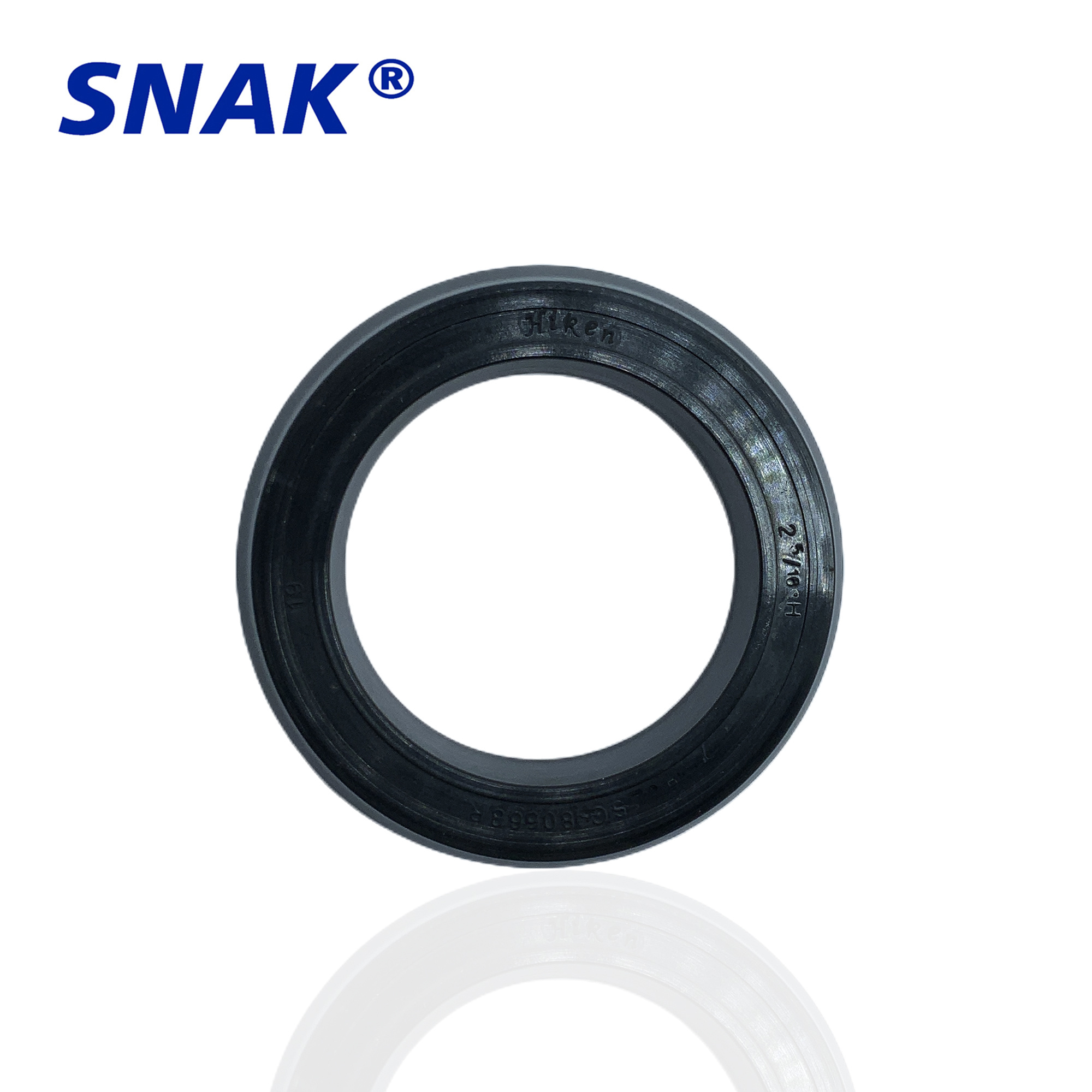

SNAK Factory Hiken Standard Brake Cup Seal 80563R 2 5/16 H

Cylinder Black Rubber Honed Brake Ring Seal

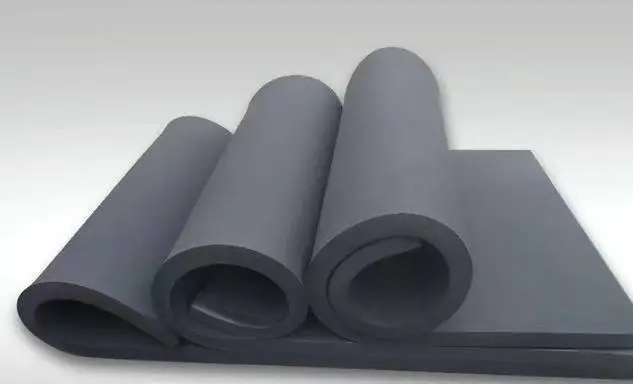

EDPM Material

EPDM is compatible with polar substances, e.g. fireproof hydraulic fluids, ketones, hot and cold water, and alkalis. It is incompatible with most hydrocarbons, such as oils, kerosene, aromatic compounds, gasoline, and halogenated solvents. EPDM exhibits outstanding resistance to heat, ozone, steam, and weather. It is an electrical insulator.

Rubber Brake Cup Ring

It is a rubber cup, also known as a leather ring, is a kind of rubber product in the shape of a bowl (oring). It is usually made of EDPM rubber.

Rubber brake cups are widely used in the hydraulic braking system, clutch control system and afterburner pump system of cars, light vehicles, minivans and some trucks, playing the role of pressure transmission and sealing.

Name	brake rubber cup
Material	EPDM
Type	ring or cup
Color	black
Size	many models are available
Packing	plastic bag+carton or customized

Disadvantages Of Most Brake Cup Rings

(1) When working at low temperature, the sealing surface between the cup and the cavity can not play a sealing role due to cold shrinkage; (2) In the contact area between the sealing teeth and the cup, the cup material is very easy to be damaged locally, and because the effective length of the contact surface is very short, it is difficult to have good sealing performance, especially under low temperature working conditions

Advantages Of Our Brake Cup Ring

01.Good oil,gas and fuel resistance
02.Different temperature resistance
03.Aging-resistance ,long using life
04.Good air tightness,reliably sealing
05.Well acoustic absorption
06.Good rebound capability
07.High insulation,non-conductive
08.Complete model

Tens of thousands of specifications are available from stock. For more models and specifications,
please consult customer service

1	04516	22	SC-47546R	43	SC-80209R
2	04514	23	SC-4532R	44	SC-80203R
3	04515	24	SC-47575R	45	SC-80201
4	03658	25	SC-4518R	46	SC-80205R
5	07064	26	47622	47	SC-80163R
6	SC-1499	27	47624	48	SC-80206R
7	SC-102A	28	41473	49	SC-80208R
8	SC-2936	29	SC-40493R	50	SC-80133R
9	SD-2108	30	SC-47633R	51	SC-80513R
10	SC-30304	31	SC-50433R	52	SC-80093R
11	SC-30423R	32	SC-51094	53	SC-80073R
12	SC-30183R	33	SC-50274	54	SC-80033R
13	SC-30433R	34	SC-7631R	55	SC-80023
14	SC-3536R	35	SC-7638R	56	SC-80463R
15	SC-3023R	36	SC-7059R	57	SC-80413R
16	SC-3658R	37	SC-7636R	58	SC-81363R
17	SC-3534	38	SC-7006	59	SC-81573R
18	SC-30213R	39	SC-7633R	60	SC-80193R
19	SC-30463R	40	SC-7049R	61	SC-81373R
20	SC-4318R	41	SC-7064R	62	SC-80207R
21	SC-47565R	42	SC-80204R	63	SC-80423R
