Overview

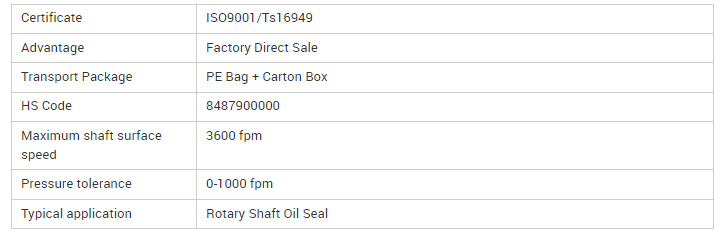

Essential details
Size : All sizes
Brand Name : SNAK
Product name : Hydraulic Cylinder Piston Rod Seal Series
Certificate : ISO9001/TS16949
Type : Dust Oil Seal
Pressure tolerance : 0-1000 fpm
Packing ：Plastic Bags +Carton
Place of Origin : Hebei, China
Model Number : All Types
Color : Customers Required
Features : High Temperature Resistance
Material type : PU NBR FKM
OEM : Provided
Sampe ：Avalible
Packaging & delivery
Packaging Details : cartons packing Delivery Detail Within 15 days
Port : China port
Supply Ability :1000000 Piece/Pieces per Week
Lead time :
SNAK Factory ISO Certificated UN UNS UHS IDU U+S UPH VES IDI ISI SPG SPGW SPGO KDAS Hydraulic Cylinder Piston Rod Seal Series
Hydraulic cylinder seals are used to seal the opening between various components in the hydraulic cylinder. There are two main types of hydraulic seals in the system:
* Dynamic seals
They seal between components in relative motion. In a hydraulic cylinder the rod sealing system seals dynamic reciprocating motion
between the piston rod and head, while the piston sealing system seals dynamic reciprocating motion between the piston and
cylinder bore.
* Static seals
They seal between components fixed together without relative motion. Hydraulic cylinders use static seals in various locations
depending on the design and construction. The most common are static seals between the piston and piston rod and between the head
and cylinder bore tube.
*01.Piston seal functions
* Act as pressure barrier and prevent fluid passing the piston – important for controlling the cylinder motion or maintaining the position when at rest
*02.Rod seal functions
* Act as pressure barrier and keep the operating fluid inside the cylinder
* Regulate the fluid film which extends with the surface of the piston rod – important to inhibit rod corrosion and to lubricate the wiper seal and the rod seal itself
* Accept the lubrication film back into the cylinder when the rod retracts
*03.Wiper seal functions
* Exclude external contaminants from entering the cylinder assembly and the hydraulic system
* Accept the lubrication film back into the cylinder when the rod retracts

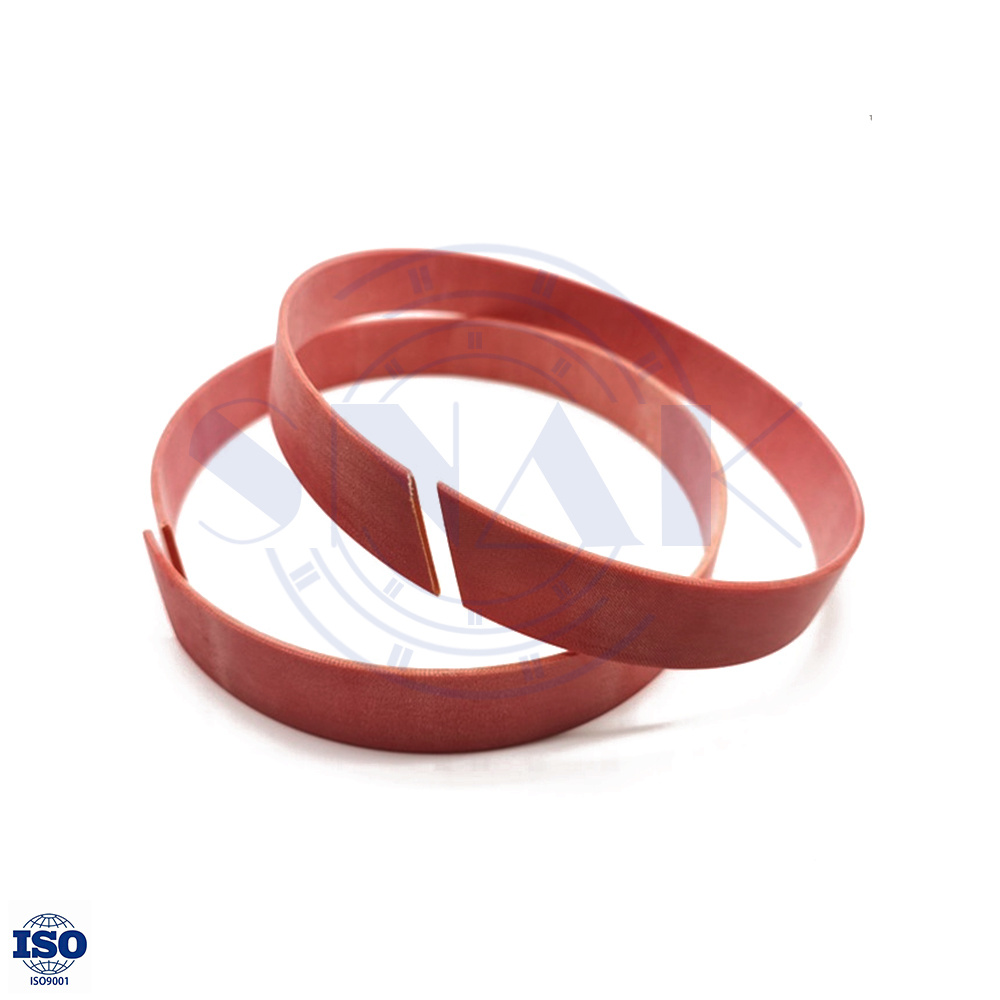

*04.Guide rings (rod and piston) functions
* Prevent metal-to-metal contact between components
* React the radial load caused by side loads on the cylinder assembly
* Keep the piston rod and piston accurately centred in the cylinder assembly – important for performance of the rod sealing system and piston sealing system

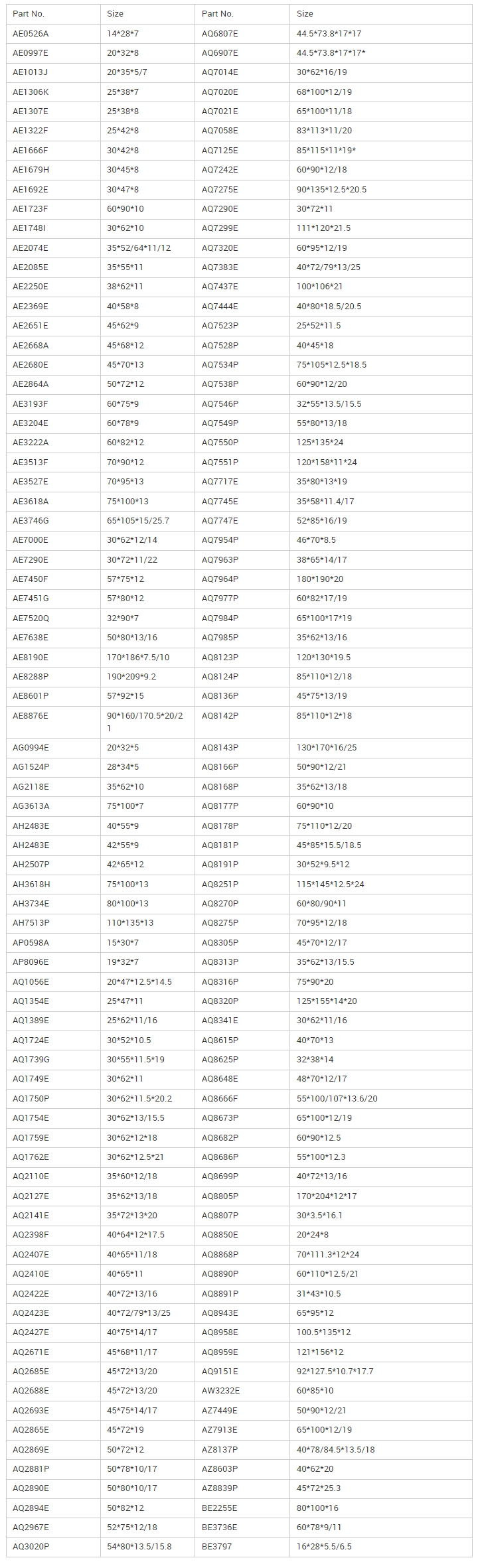

Tens of thousands of specifications are available from stock. For more models and specifications,
please consult customer service
