90-10

Category: End Cap Oil Seal

Consult Back

Overview

Essential details

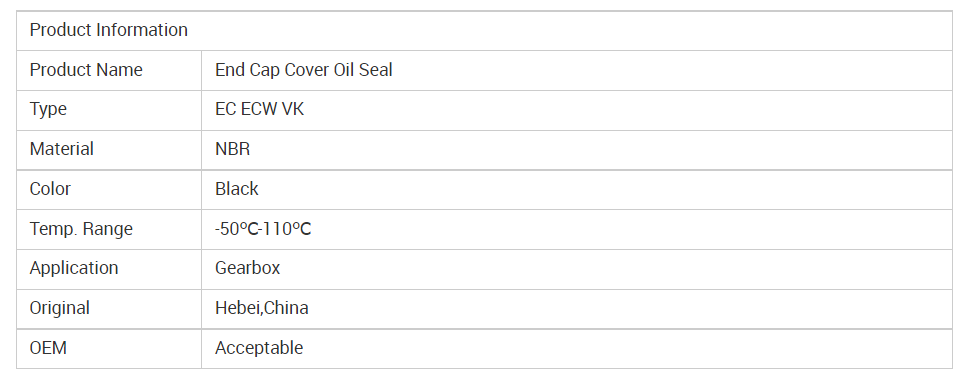

Size : 90*10

Brand Name : SNAK

Product Name : EC Oil Seal Rubber End Cover Oil Seal

Temperature : -40~220°C

Sample : Freely

Application : Gearbox

Quality : High Quality



Place of Origin : Hebei, China

Model Number : EC

Material Type : NBR FKM

Certificate : ISO9001/TS16949

Type : EC

OEM : Accpetable

Feature : Oil Resistance



Packaging & delivery

Supply Ability：1000000 Piece/Pieces per Week

Port：China Port
Package Type : cartons packing Delivery Detail Within 15 days
Lead time :





SNAK Factory EC VK 90*10  Nitrile Rubber End Cap Seal End Cap Cover Plug Seal End Covers Seal Auto part for Automotive Engines

 *Description

End caps are designed for applications where the shaft does not pass through the housing wall of the bore. The end cover provides protection for the bearings. The covers are designed to fit into housing bores for rotary shaft seals. They have the same tolerances as those for the O.D. of a seal. The inner housing is carbon steel and the outer seal is nitrile rubber. It is mainly used for the orifice, the core opening and the bearing of an oil seal, which is particularly used as a substitute for an end flange or an end cover in a gear box, and the rubber layer at the outer diameter ensures the oil leakage in the oil seal seat.
At the same time,it also strengthens the neatness and beauty of the cabinet.

 *Advantages



1. good static sealing
2. compensation for different thermal expansion
3. there is no risk of exposure to corrosion
4. effective protection against air side pollution
5. allows higher surface roughness of steel holes
6. installed in the split groove
