How Valve Seals Work

How Valve Seals Work

Valve seals work by forming a tight barrier between moving elements, typically the valve stem and the valve guide. As the valve opens and shuts several times during operation, its seal must retain integrity under various pressures, temperatures, and mechanical motions. This is accomplished by precise engineering of both material composition and geometric design of the seal.

These seals are made of rubber, polytetrafluoroethylene (PTFE), and other polymers that are resistant to wear and chemical damage. The material used is determined by the individual application requirements, such as temperature resistance, compatibility with the fluids or gasses to be sealed, and durability.

In terms of design, most valve seals include a lip structure that securely wraps around the valve stem. This lip is designed to impart just enough pressure to the stem to form a seal while minimizing friction, which may otherwise cause premature wear or damage to either component. Some designs additionally use springs or other mechanical mechanisms to maintain continuous pressure around the stem regardless of the circumstances.

As valves are actuated (opened or closed), the seal must adjust dynamically to pressure fluctuations while maintaining its sealing qualities. This flexibility avoids leakage, which might jeopardize system efficiency or safety. Furthermore, by avoiding direct metal-to-metal contact between moving components through appropriate sealing procedures, wear over time is reduced, hence increasing total component lifespan.


Types of Valve Seals

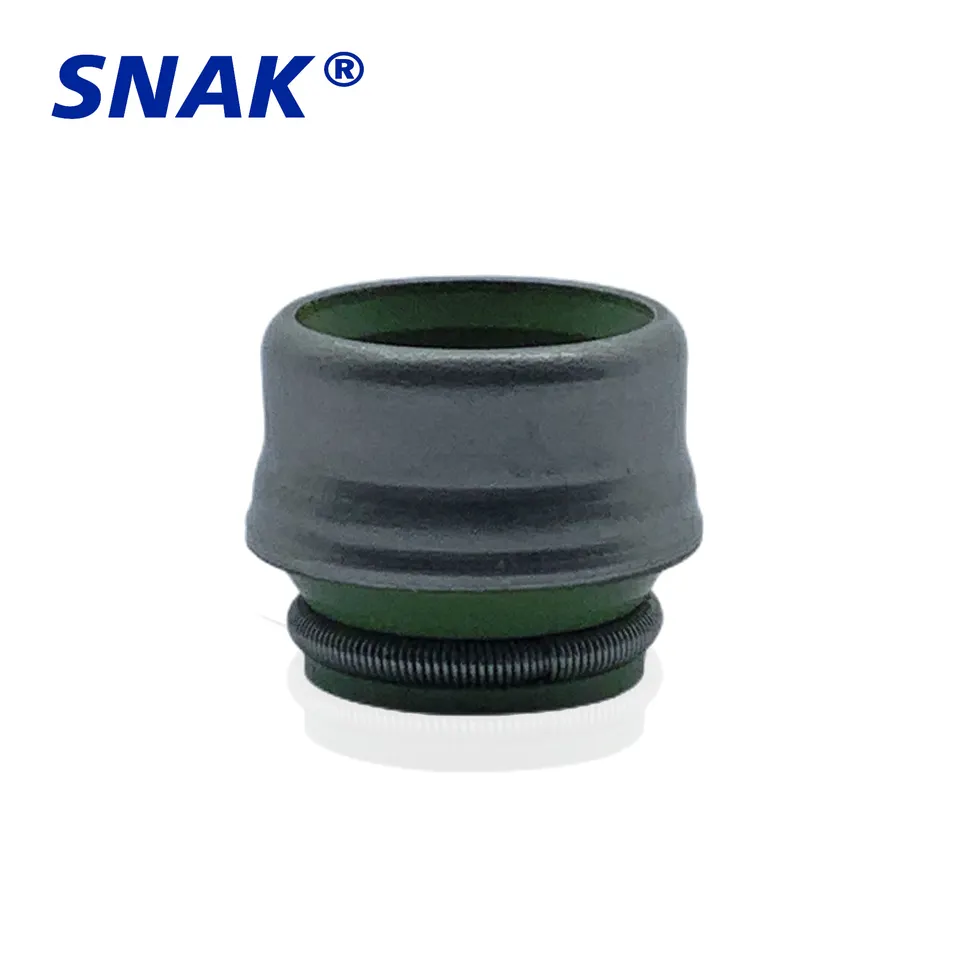

Positive valve seals are made of high-grade rubber or synthetic materials and are designed to fit tightly around the valve stem. They are used in engines to reduce oil consumption and keep oil from entering the combustion chamber. Positive seals are direct-contact seals that fit securely against the valve stem and provide perfect control over oil flow.

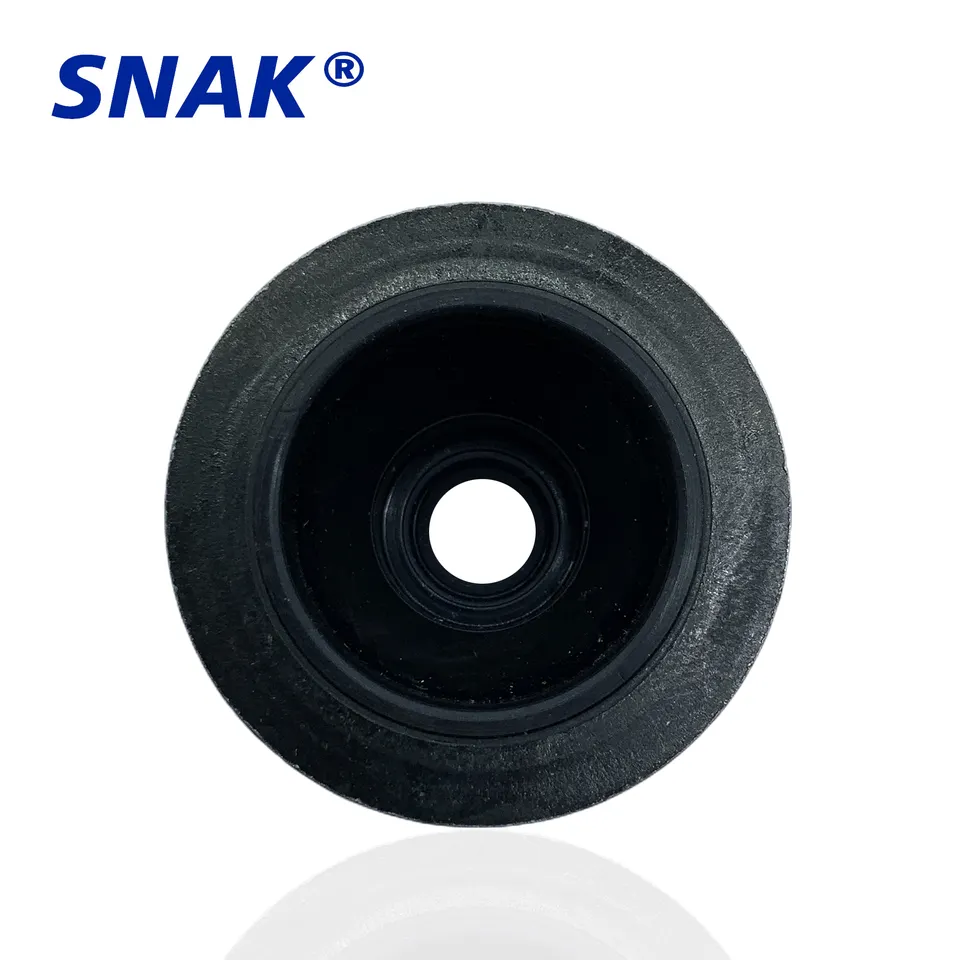

Deflector Valve Seals: Also called as umbrella seals, these are constructed of rubber or silicone and are intended to deflect oil away from the valve stem. They do not create as tight a seal as positive valve seals, but they are useful in older engines with less accurate oil management requirements. Deflector seals capture oil that drops down from the valve guide and divert it away from the stem.
